Manage Functions as a Service with the CLI
An engineer has a few tasks to perform when it comes to working with Lambda -- writing the code, packaging it for deployment, and finally monitoring its execution and fine-tuning. We're going to look at basic packaging and deployment with the aws cli.
Check User or Role Credentials
# check the current aws credentials used, similar to whoami
aws iam get-user
# check the user policies that are attached to the user name
aws iam list-attached-user-policies --user-name myawsusername
# check the group policies that are attached to the user name
aws iam list-groups-for-user --user-name myawsusername
# check for access keys granted to a user name
aws iam list-access-keys --user-name myawsusername
# check for roles within an account
aws iam list-roles
IAM Role for Lambda to Assume
In order for the lambda function to execute, we need to create an minimalist IAM Role that Lambda can assume
for executing the function on our behalf.
// save this file as policy.json
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "lambda.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
# Create AWS IAM role
aws iam create-role --role-name basic-lambda-role --assume-role-policy-document file://policy.json
# output
{
"Role": {
"AssumeRolePolicyDocument": {
"Version": "2012-10-17",
"Statement": [
{
"Action": "sts:AssumeRole",
"Effect": "Allow",
"Principal": {
"Service": "lambda.amazonaws.com"
}
}
]
},
"RoleId": "AROAIFLLG5YTUYNT6GKGA",
"CreateDate": "2017-12-04T02:54:51.623Z",
"RoleName": "basic-lambda-role",
"Path": "/",
"Arn": "arn:aws:iam::1234567891012:role/basic-lambda-role"
}
}
# List functions
aws lambda list-functions --output table
Execute (Invoke) a Lambda function
Each function can be invoked from the command line, with the event data passed in from a local file.
# read request data into a local variable
request=$(< request.json)
# invoke the function with the data, and write to local file
aws lambda invoke --function-name myFunction --payload "$request" response.json
# read response file into local variable then print to the console
responseOutput=$(< response.json )
echo $responseOutput
Move files between a local host and S3
# copy a local file to a s3 bucket and folder
aws s3 cp foo.json s3://mybucket/myfolder
# retrieve a local file from a s3 bucket
aws s3 cp s3://mybucket/myfolder foo.json
# list all buckets within an account
aws s3 ls
# list all of the objects and folder within a bucket
aws s3 ls s3://mybucket
# test removal (aka dry run) of an object from a s3 bucket
aws s3 rm s3://mybucket/myfolder/foo.json --dryrun
# remove an object from a S3 bucket
aws s3 rm s3://mybucket/myfolder/foo.json
See S3 docs
Lambda Function reads DynamoDB table: Books
// nodejs4
// index.js
var AWS = require("aws-sdk");
var doClient = new AWS.DynamoDB.DocumentClient();
exports.handler = (event, context, callback) => {
console.log("PARAMS---" +parseInt(event.params.querystring.bookid));
var params = {
TableName: "Books",
Key: {
"bookid": parseInt(event.params.querystring.bookid)
}
}; // end params
doClient.get(params, function(err, data) {
if(err) {
console.error("Unable to read item. Error JSON:", JSON.string(err, null, 2));
} else {
callback(null, JSON.parse( JSON.stringify(data, null, 2)));
}
}); // end doClient
}; // end of exports.handler
// json input test
{
"body-json": {},
"params" : {
"path" : {},
"querystring" : {
"bookid" : "1"
}
}
}
Update an existing Lambda function
# first create a zip file containing all elements in the package
# note lambda_dir/ is what includes libraries in the zip
zip -r myFunction.zip index.js lambda_dir/ package.json
# then copy the zip file to S3
aws s3 cp myfunction.zip s3://mybucket/myfolder
# finally deploy the package to the runtime environment
aws lambda update-function-code --function-name myFunction --s3-bucket mybucket --s3-key myfunction.zip
Create a new Lambda function
# first create a zip file containing all elements in the package
# note lambda_dir/ is what includes libraries in the zip
zip -r myFunction.zip index.js lambda_dir/ package.json
# create a new function based on the parameters and zip package
aws lambda create-function --function-name newFunction --region us-east-1 --memory-size 128 --runtime nodejs6.10 --role arn:aws:iam::1234567891012:role/basic-lambda-role --handler index.handler --zip-file "fileb://myfunction.zip"
# note: runtime options include nodejs6.10, java8, python2.7

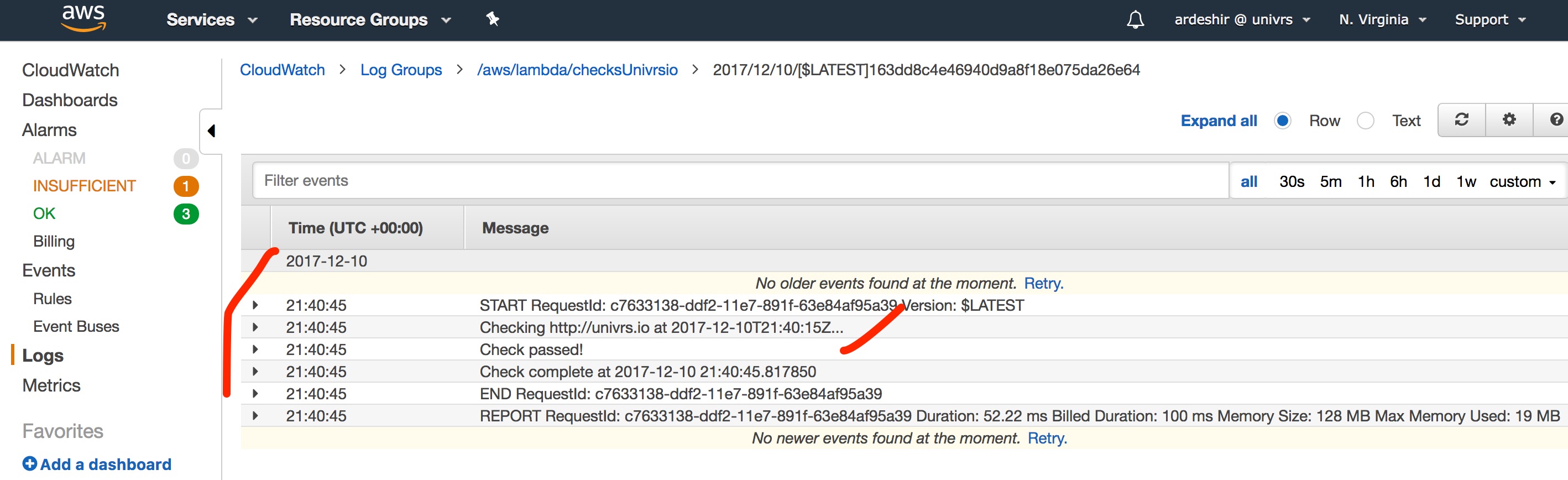

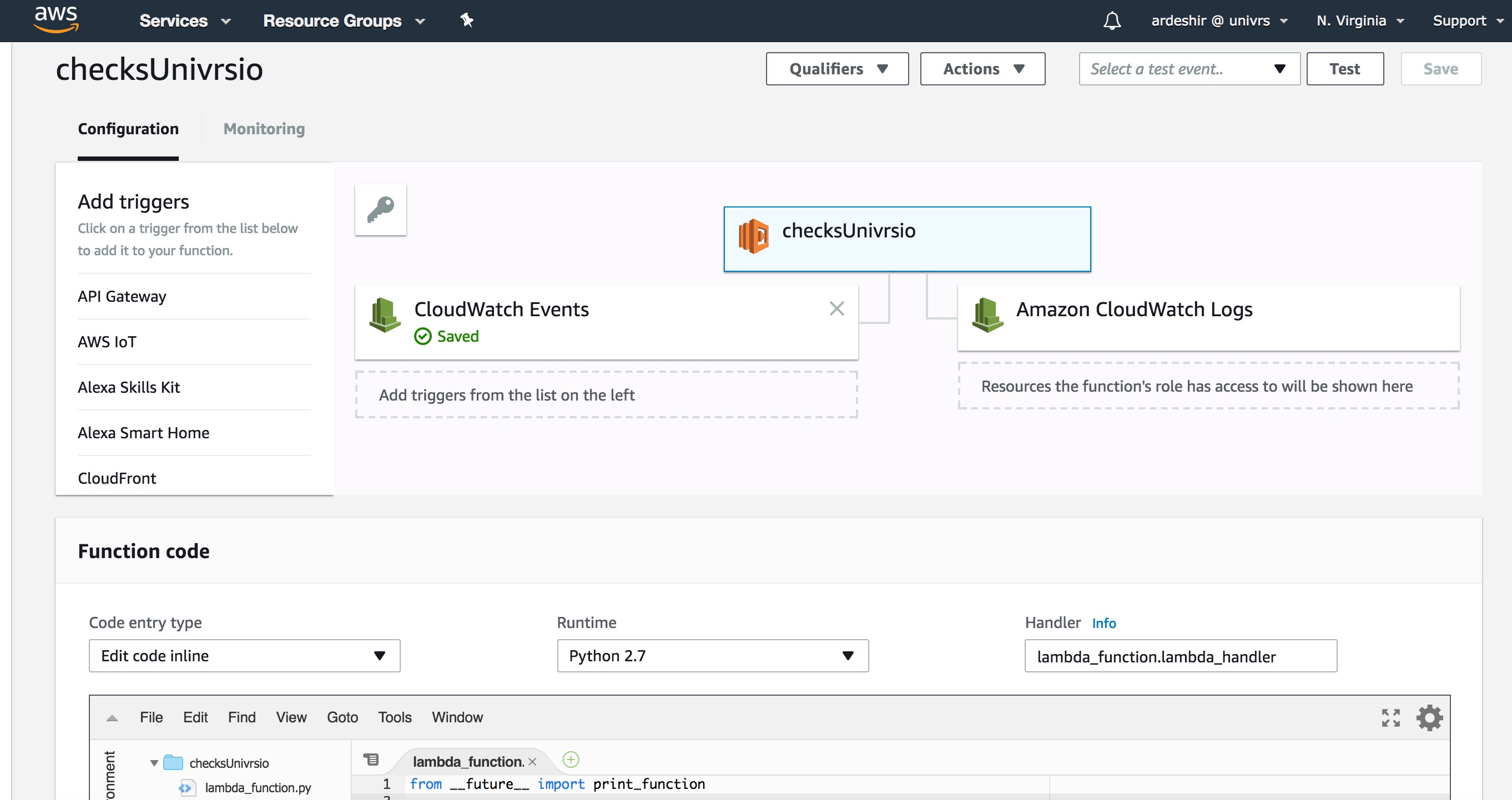

CloudWatch Event triggers a Lambda to check if site is up
Github repo for testing the code locally
calling code locally:
$> expected=Univrs.io site=http://univrs.io python checkSite.py
from __future__ import print_function
import os
from datetime import datetime
from urllib2 import urlopen
SITE = os.environ['site'] # URL of the site to check, stored in the site environment variable
EXPECTED = os.environ['expected'] # String expected to be on the page, stored in the expected environment variable
def validate(res):
'''Return False to trigger the canary
Currently this simply checks whether the EXPECTED string is present.
However, you could modify this to perform any number of arbitrary
checks on the contents of SITE.
'''
return EXPECTED in res
def lambda_handler(event, context):
print('Checking {} at {}...'.format(SITE, event['time']))
try:
if not validate(urlopen(SITE).read()):
raise Exception('Validation failed')
except:
print('Check failed!')
raise
else:
print('Check passed!')
return event['time']
finally:
print('Check complete at {}'.format(str(datetime.now())))
Using CloudFormation's cfn-response
AWSTemplateFormatVersion: '2010-09-09'
Parameters:
ExistingSecurityGroups:
Type: List
ExistingVPC:
Type: AWS::EC2::VPC::Id
Description: The VPC ID that includes the security groups in the ExistingSecurityGroups
parameter.
InstanceType:
Type: String
Default: t2.micro
AllowedValues:
- t2.micro
- m1.small
Mappings:
AWSInstanceType2Arch:
t2.micro:
Arch: HVM64
m1.small:
Arch: PV64
AWSRegionArch2AMI:
us-east-1:
PV64: ami-1ccae774
HVM64: ami-1ecae776
us-west-2:
PV64: ami-ff527ecf
HVM64: ami-e7527ed7
us-west-1:
PV64: ami-d514f291
HVM64: ami-d114f295
eu-west-1:
PV64: ami-bf0897c8
HVM64: ami-a10897d6
eu-central-1:
PV64: ami-ac221fb1
HVM64: ami-a8221fb5
ap-northeast-1:
PV64: ami-27f90e27
HVM64: ami-cbf90ecb
ap-southeast-1:
PV64: ami-acd9e8fe
HVM64: ami-68d8e93a
ap-southeast-2:
PV64: ami-ff9cecc5
HVM64: ami-fd9cecc7
sa-east-1:
PV64: ami-bb2890a6
HVM64: ami-b52890a8
cn-north-1:
PV64: ami-fa39abc3
HVM64: ami-f239abcb
Resources:
SecurityGroup:
Type: AWS::EC2::SecurityGroup
Properties:
GroupDescription: Allow HTTP traffic to the host
VpcId:
Ref: ExistingVPC
SecurityGroupIngress:
- IpProtocol: tcp
FromPort: '80'
ToPort: '80'
CidrIp: 0.0.0.0/0
SecurityGroupEgress:
- IpProtocol: tcp
FromPort: '80'
ToPort: '80'
CidrIp: 0.0.0.0/0
AllSecurityGroups:
Type: Custom::Split
Properties:
ServiceToken: !GetAtt AppendItemToListFunction.Arn
List:
Ref: ExistingSecurityGroups
AppendedItem:
Ref: SecurityGroup
AppendItemToListFunction:
Type: AWS::Lambda::Function
Properties:
Handler: index.handler
Role: !GetAtt LambdaExecutionRole.Arn
Code:
ZipFile: !Sub |
var response = require('cfn-response');
exports.handler = function(event, context) {
var responseData = {Value: event.ResourceProperties.List};
responseData.Value.push(event.ResourceProperties.AppendedItem);
response.send(event, context, response.SUCCESS, responseData);
};
Runtime: nodejs4.3
MyEC2Instance:
Type: AWS::EC2::Instance
Properties:
ImageId:
Fn::FindInMap:
- AWSRegionArch2AMI
- Ref: AWS::Region
- Fn::FindInMap:
- AWSInstanceType2Arch
- Ref: InstanceType
- Arch
SecurityGroupIds: !GetAtt AllSecurityGroups.Value
InstanceType:
Ref: InstanceType
LambdaExecutionRole:
Type: AWS::IAM::Role
Properties:
AssumeRolePolicyDocument:
Version: '2012-10-17'
Statement:
- Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
Action:
- sts:AssumeRole
Path: "/"
Policies:
- PolicyName: root
PolicyDocument:
Version: '2012-10-17'
Statement:
- Effect: Allow
Action:
- logs:*
Resource: arn:aws:logs:*:*:*
Outputs:
AllSecurityGroups:
Description: Security Groups that are associated with the EC2 instance
Value:
Fn::Join:
- ", "
- Fn::GetAtt:
- AllSecurityGroups
- Value
CloudFormation WAF & Lambda
---
AWSTemplateFormatVersion: '2010-09-09'
Description: 'This template helps setup a WAF ACL to block IPs listed on the SANS
Bad IP list. It also sets up a Lambda function to help keep the WAF up-to-date
with the current SANS list. After creating a stack with this template you can
manually initiate an update by performing a test run on the Lambda function.'
Parameters: {}
Resources:
LambdaRole:
Type: AWS::IAM::Role
Properties:
AssumeRolePolicyDocument:
Statement:
- Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
Action: sts:AssumeRole
Policies:
- PolicyName: CloudWatchLogs
PolicyDocument:
Statement:
- Effect: Allow
Action: logs:*
Resource: "*"
- PolicyName: WAFGetChangeToken
PolicyDocument:
Statement:
- Effect: Allow
Action:
- waf:GetChangeToken
- waf:GetChangeTokenStatus
Resource: "*"
- PolicyName: WAFGetAndUpdateIPSet
PolicyDocument:
Statement:
- Effect: Allow
Action:
- waf:GetIPSet
- waf:UpdateIPSet
Resource:
- Fn::Join:
- ''
- - 'arn:aws:waf::'
- Ref: AWS::AccountId
- ":ipset/"
- Ref: IPSet
IPSet:
Type: AWS::WAF::IPSet
Properties:
Name: SANS IPs
Rule:
Type: AWS::WAF::Rule
Properties:
Name: SANS Rule
MetricName: sansRule
Predicates:
- DataId:
Ref: IPSet
Type: IPMatch
Negated: 'false'
WebACL:
Type: AWS::WAF::WebACL
Properties:
Name: WebACL
DefaultAction:
Type: ALLOW
MetricName: WebACL
Rules:
- Action:
Type: BLOCK
Priority: 1
RuleId:
Ref: Rule
LambdaFunction:
Type: AWS::Lambda::Function
Properties:
Handler: index.handler
Role:
Fn::GetAtt:
- LambdaRole
- Arn
Runtime: python2.7
MemorySize: '512'
Timeout: '60'
Code:
ZipFile: !Sub |
#!/usr/bin/python
import urllib2
import re
import boto3
from StringIO import StringIO
import gzip
ip_set_id = "7ca34005-4af0-40df-b378-25dfa8719f63"
url = "https://isc.sans.edu/block.txt"
waf_client = boto3.client('waf')
#
# Source the bad IPs from the SANS service.
#
def getSansBadIps(url):
# Uncomment for testing...
#return ['142.77.69.0/24', '182.100.27.0/24', '61.240.144.0/24', '222.174.5.0/24',
#'222.186.21.0/24', '117.34.74.0/24', '62.138.6.0/24', '209.126.127.0/24',
#'69.64.57.0/24', '62.138.3.0/24', '209.126.111.0/24', '172.93.97.0/24',
#'91.213.33.0/24', '119.189.108.0/24', '83.220.172.0/24', '14.32.80.0/24',
#'14.43.137.0/24', '118.39.182.0/24', '210.218.188.0/24', '39.67.160.0/24']
ret = []
headers = {'User-Agent': 'lambda-python-sec-script',
'Accept-encoding': 'gzip'}
try:
request = urllib2.Request(url, headers=headers)
response = urllib2.urlopen(request)
except urllib2.HTTPError, e:
print("Failed to get get web resource - {}.".format(e.code))
return False
else:
if (response.info().get('Content-Encoding') == 'gzip'):
buf = StringIO( response.read())
f = gzip.GzipFile(fileobj=buf)
contents = f.read()
else:
contents = response.read()
#print(contents)
lines = contents.split("\n")
for line in lines:
if (len(line) > 0):
if (line[0] != "#"):
parts = line.split(" ")
if re.match("(?:\d{1,3}\.){3}\d{1,3}(?:/\d\d?)?", parts[0]):
ret.append("{}/{}".format(parts[0], parts[2]))
return ret
#
# Source the values from the current WAF IPSet
#
def getCurrentIPSet(ip_set_id):
ret = []
try:
ip_set = waf_client.get_ip_set(
IPSetId=ip_set_id
)
except:
print("Failed to get get IPSet")
return False
else:
for item in ip_set['IPSet']['IPSetDescriptors']:
ret.append(item['Value'])
return ret
#
# Format a dict for the update statment
#
def createUpdatesList( cidr_to_remove, cidr_to_add ):
ret = []
for cidr in cidr_to_remove:
ret.append( {'Action': 'DELETE','IPSetDescriptor': {'Type': 'IPV4', 'Value': cidr}} )
for cidr in cidr_to_add:
ret.append( {'Action': 'INSERT','IPSetDescriptor': {'Type': 'IPV4', 'Value': cidr}} )
return ret
#
# Send update to AWS WAF
#
def updateIPSet( IPSet, updatesList ):
change_token = waf_client.get_change_token()
print("Change token: {}".format(change_token['ChangeToken']))
response_token = waf_client.update_ip_set(
IPSetId=IPSet,
ChangeToken=change_token['ChangeToken'],
Updates=updatesList
)
return waf_client.get_change_token_status(ChangeToken=response_token['ChangeToken'])
#
# Lambda Handler
#
def handler( event, context ):
print("Starting update...")
sans_bad_ips = getSansBadIps(url)
print("Found {} CIDRs from SANS".format( len(sans_bad_ips) ))
print(sans_bad_ips)
current_ip_set = getCurrentIPSet(ip_set_id)
print("Found {} CIDRs from current IPSet".format( len(current_ip_set) ))
print(current_ip_set)
cidr_to_remove = [ i for i in current_ip_set if i not in sans_bad_ips]
print("There are {} CIDRs to REMOVE from current IPSet".format( len(cidr_to_remove) ))
print(cidr_to_remove)
cidr_to_add = [ i for i in sans_bad_ips if i not in current_ip_set]
print("There are {} CIDRs to add ADD to current IPSet".format( len(cidr_to_add) ))
print(cidr_to_add)
updatesList = (createUpdatesList(cidr_to_remove, cidr_to_add))
if len(updatesList):
print("Sending update to WAF...")
return(updateIPSet( ip_set_id, updatesList ))
else:
return("No changes to be made.")
print("Done.")
handler(False, False)
EventsRule:
Type: AWS::Events::Rule
Properties:
Description: WAF Reputation Lists
ScheduleExpression: rate(1 hour)
Targets:
- Arn:
Fn::GetAtt:
- LambdaFunction
- Arn
Id: LambdaFunction
LambdaPermission:
Type: AWS::Lambda::Permission
Properties:
FunctionName:
Ref: LambdaFunction
Action: lambda:InvokeFunction
Principal: events.amazonaws.com
SourceArn:
Fn::GetAtt:
- EventsRule
- Arn
CloudFormation Backend Photo Rekognition
AWSTemplateFormatVersion: '2010-09-09'
Description: Backend for photo sharing reference architecture.
Outputs:
CognitoIdentityPool:
Value:
Ref: TestClientIdentityPool
DDBAlbumMetadataTable:
Value:
Ref: AlbumMetadataDDBTable
DDBImageMetadataTable:
Value:
Ref: ImageMetadataDDBTable
DescribeExecutionLambda:
Value:
Ref: DescribeExecutionFunction
Region:
Value:
Ref: AWS::Region
S3PhotoRepoBucket:
Value:
Ref: PhotoRepoS3Bucket
Resources:
AlbumMetadataDDBTable:
Properties:
AttributeDefinitions:
- AttributeName: albumID
AttributeType: S
- AttributeName: creationTime
AttributeType: N
- AttributeName: userID
AttributeType: S
GlobalSecondaryIndexes:
- IndexName: userID-creationTime-index
KeySchema:
- AttributeName: userID
KeyType: HASH
- AttributeName: creationTime
KeyType: RANGE
Projection:
ProjectionType: ALL
ProvisionedThroughput:
ReadCapacityUnits: '2'
WriteCapacityUnits: '1'
KeySchema:
- AttributeName: albumID
KeyType: HASH
ProvisionedThroughput:
ReadCapacityUnits: '2'
WriteCapacityUnits: '1'
Type: AWS::DynamoDB::Table
BackendProcessingLambdaRole:
Properties:
AssumeRolePolicyDocument:
Statement:
- Action:
- sts:AssumeRole
Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
Version: '2012-10-17'
Path: /MediaSharingRefarch/
Policies:
- PolicyDocument:
Statement:
- Action:
- logs:CreateLogGroup
- logs:CreateLogStream
- logs:PutLogEvents
Effect: Allow
Resource: '*'
Sid: AllowLogging
Version: '2012-10-17'
PolicyName: LambdaWriteCWLogs
- PolicyDocument:
Statement:
- Action:
- s3:Get*
Effect: Allow
Resource:
Fn::Sub: arn:aws:s3:::${PhotoRepoS3Bucket}/*
Sid: ReadFromPhotoRepoS3Bucket
Version: '2012-10-17'
PolicyName: ReadFromPhotoRepoS3Bucket
- PolicyDocument:
Statement:
- Action:
- s3:PutObject
Effect: Allow
Resource:
Fn::Sub: arn:aws:s3:::${PhotoRepoS3Bucket}/*
Sid: WriteToPhotoRepoS3Bucket
Version: '2012-10-17'
PolicyName: WriteToPhotoRepoS3Bucket
- PolicyDocument:
Statement:
- Action:
- dynamodb:UpdateItem
- dynamodb:PutItem
Effect: Allow
Resource:
Fn::Sub: arn:aws:dynamodb:${AWS::Region}:${AWS::AccountId}:table/${ImageMetadataDDBTable}
Sid: WriteToImageMetadataDDBTable
Version: '2012-10-17'
PolicyName: WriteToImageMetadataDDBTable
- PolicyDocument:
Statement:
- Action:
- rekognition:DetectLabels
Effect: Allow
Resource: '*'
Sid: RekognitionDetectLabels
Version: '2012-10-17'
PolicyName: RekognitionDetectLabels
- PolicyDocument:
Statement:
- Action:
- states:StartExecution
Effect: Allow
Resource: '*'
Sid: StepFunctionStartExecution
Version: '2012-10-17'
PolicyName: StepFunctionStartExecution
Type: AWS::IAM::Role
CreateS3EventTriggerFunction:
Properties:
CodeUri: s3://media-sharing-refarch/8c7e2179b5bc3480407509396c78b95e
Description: Used with CloudFormation as a custom resource helper to enable
S3 event trigger to invoke the start step function Lambda function.
Handler: index.handler
MemorySize: 1024
Role:
Fn::GetAtt:
- CustomResourceHelperRole
- Arn
Runtime: nodejs4.3
Timeout: 200
Type: AWS::Serverless::Function
CustomResourceHelperRole:
Properties:
AssumeRolePolicyDocument:
Statement:
- Action:
- sts:AssumeRole
Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
Version: '2012-10-17'
Path: /MediaSharingRefarch/
Policies:
- PolicyDocument:
Statement:
- Action:
- logs:CreateLogGroup
- logs:CreateLogStream
- logs:PutLogEvents
Effect: Allow
Resource: '*'
Sid: AllowLogging
Version: '2012-10-17'
PolicyName: LambdaWriteCWLogs
- PolicyDocument:
Statement:
- Action:
- s3:PutBucketNotification
Effect: Allow
Resource:
Fn::Sub: arn:aws:s3:::${PhotoRepoS3Bucket}
Sid: PutS3EventNofication
- Action:
- lambda:AddPermission
Effect: Allow
Resource: '*'
Sid: AddPermissionToLambda
Version: '2012-10-17'
PolicyName: AddS3EventTrigger
Type: AWS::IAM::Role
DescribeExecutionFunction:
Properties:
CodeUri: s3://media-sharing-refarch/1f00cdd048caae4e89d5ce2a890ebe76
Description: Calls DescribeExecution on a state machine execution.
Handler: index.handler
MemorySize: 1024
Role:
Fn::GetAtt:
- DescribeExecutionFunctionRole
- Arn
Runtime: nodejs4.3
Timeout: 200
Type: AWS::Serverless::Function
DescribeExecutionFunctionRole:
Properties:
AssumeRolePolicyDocument:
Statement:
- Action:
- sts:AssumeRole
Effect: Allow
Principal:
Service:
- lambda.amazonaws.com
Version: '2012-10-17'
Path: /MediaSharingRefarch/
Policies:
- PolicyDocument:
Statement:
- Action:
- logs:CreateLogGroup
- logs:CreateLogStream
- logs:PutLogEvents
Effect: Allow
Resource: '*'
Sid: AllowLogging
Version: '2012-10-17'
PolicyName: LambdaWriteCWLogs
- PolicyDocument:
Statement:
- Action:
- states:DescribeExecution
Effect: Allow
Resource: '*'
Sid: DescribeStepFunction
Version: '2012-10-17'
PolicyName: DescribeStepFunction
Type: AWS::IAM::Role
ExtractImageMetadataFunction:
Properties:
CodeUri: s3://media-sharing-refarch/85cfd440512536a13ea58fe42d838984
Description: Extract image metadata such as format, size, geolocation, etc.
Handler: index.handler
MemorySize: 1024
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 200
Type: AWS::Serverless::Function
GenerateThumbnailFunction:
Properties:
CodeUri: s3://media-sharing-refarch/bf7eda74763ba43004262c3a9867bbc9
Description: Generate thumbnails for images
Handler: index.handler
MemorySize: 1536
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 300
Type: AWS::Serverless::Function
ImageMetadataDDBTable:
Properties:
AttributeDefinitions:
- AttributeName: albumID
AttributeType: S
- AttributeName: imageID
AttributeType: S
- AttributeName: uploadTime
AttributeType: N
GlobalSecondaryIndexes:
- IndexName: albumID-uploadTime-index
KeySchema:
- AttributeName: albumID
KeyType: HASH
- AttributeName: uploadTime
KeyType: RANGE
Projection:
ProjectionType: ALL
ProvisionedThroughput:
ReadCapacityUnits: '3'
WriteCapacityUnits: '3'
KeySchema:
- AttributeName: imageID
KeyType: HASH
ProvisionedThroughput:
ReadCapacityUnits: '3'
WriteCapacityUnits: '3'
Type: AWS::DynamoDB::Table
ImageProcStartExecutionFunction:
DependsOn: PhotoRepoS3Bucket
Properties:
CodeUri: s3://media-sharing-refarch/2db09bf6931a36fae77883ec8c32f740
Description: Triggered by S3 image upload to the repo bucket and start the image
processing step function workflow
Environment:
Variables:
IMAGE_METADATA_DDB_TABLE:
Ref: ImageMetadataDDBTable
STATE_MACHINE_ARN:
Ref: ImageProcStateMachine
Handler: index.handler
MemorySize: 256
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 60
Type: AWS::Serverless::Function
ImageProcStateMachine:
Properties:
DefinitionString:
Fn::Sub:
- "{\n \"Comment\": \"Image Processing workflow\",\n \"StartAt\": \"ExtractImageMetadata\"\
,\n \"States\": {\n \"ExtractImageMetadata\": {\n \"Type\": \"\
Task\",\n \"Resource\": \"${ExtractImageMetadataLambdaArn}\",\n \
\ \"InputPath\": \"$\",\n \"ResultPath\": \"$.extractedMetadata\"\
,\n \"Next\": \"ImageTypeCheck\",\n \"Catch\": [\n {\n\
\ \"ErrorEquals\": [\n \"ImageIdentifyError\"\n \
\ ],\n \"Next\": \"NotSupportedImageType\"\n }\n \
\ ],\n \"Retry\": [\n {\n \"ErrorEquals\": [\n \
\ \"ImageIdentifyError\"\n ],\n \"MaxAttempts\"\
: 0\n },\n {\n \"ErrorEquals\": [\n \"\
States.ALL\"\n ],\n \"IntervalSeconds\": 1,\n \
\ \"MaxAttempts\": 2,\n \"BackoffRate\": 1.5\n }\n \
\ ]\n },\n \"ImageTypeCheck\": {\n \"Type\": \"Choice\",\n \
\ \"Choices\": [\n {\n \"Or\": [\n {\n \
\ \"Variable\": \"$.extractedMetadata.format\",\n \
\ \"StringEquals\": \"JPEG\"\n },\n {\n \
\ \"Variable\": \"$.extractedMetadata.format\",\n \"StringEquals\"\
: \"PNG\"\n }\n ],\n \"Next\": \"TransformMetadata\"\
\n }\n ],\n \"Default\": \"NotSupportedImageType\"\n \
\ },\n \"TransformMetadata\": {\n \"Type\": \"Task\",\n \"\
Resource\": \"${TransformMetadataLambdaArn}\",\n \"InputPath\": \"\
$.extractedMetadata\",\n \"ResultPath\": \"$.extractedMetadata\",\n\
\ \"Retry\": [\n {\n \"ErrorEquals\": [\n \
\ \"States.ALL\"\n ],\n \"IntervalSeconds\": 1,\n \
\ \"MaxAttempts\": 2,\n \"BackoffRate\": 1.5\n }\n\
\ ],\n \"Next\": \"ParallelProcessing\"\n },\n \"NotSupportedImageType\"\
: {\n \"Type\": \"Fail\",\n \"Cause\": \"Image type not supported!\"\
,\n \"Error\": \"FileTypeNotSupported\"\n },\n \"ParallelProcessing\"\
: {\n \"Type\": \"Parallel\",\n \"Branches\": [\n {\n \
\ \"StartAt\": \"Rekognition\",\n \"States\": {\n \
\ \"Rekognition\": {\n \"Type\": \"Task\",\n \
\ \"Resource\": \"${RekognitionLambdaArn}\",\n \"Retry\"\
: [\n {\n \"ErrorEquals\": [\n \
\ \"States.ALL\"\n ],\n \"IntervalSeconds\"\
: 1,\n \"MaxAttempts\": 2,\n \"BackoffRate\"\
: 1.5\n }\n ],\n \"End\": true\n\
\ }\n }\n },\n {\n \"StartAt\"\
: \"Thumbnail\",\n \"States\": {\n \"Thumbnail\": {\n\
\ \"Type\": \"Task\",\n \"Resource\": \"${GenerateThumbnailLambdaArn}\"\
,\n \"Retry\": [\n {\n \"ErrorEquals\"\
: [\n \"States.ALL\"\n ],\n \
\ \"IntervalSeconds\": 1,\n \"MaxAttempts\": 2,\n\
\ \"BackoffRate\": 1.5\n }\n \
\ ],\n \"End\": true\n }\n }\n \
\ }\n ],\n \"ResultPath\": \"$.parallelResults\",\n \"Next\"\
: \"StoreImageMetadata\"\n },\n \"StoreImageMetadata\": {\n \"\
Type\": \"Task\",\n \"Resource\": \"${StoreImageMetadataLambdaArn}\"\
,\n \"InputPath\": \"$\",\n \"ResultPath\": \"$.storeResult\"\
,\n \"Retry\": [\n {\n \"ErrorEquals\": [\n \
\ \"States.ALL\"\n ],\n \"IntervalSeconds\": 1,\n\
\ \"MaxAttempts\": 2,\n \"BackoffRate\": 1.5\n \
\ }\n ],\n \"End\": true\n }\n }\n}"
- ExtractImageMetadataLambdaArn:
Fn::GetAtt:
- ExtractImageMetadataFunction
- Arn
GenerateThumbnailLambdaArn:
Fn::GetAtt:
- GenerateThumbnailFunction
- Arn
RekognitionLambdaArn:
Fn::GetAtt:
- RekognitionFunction
- Arn
StoreImageMetadataLambdaArn:
Fn::GetAtt:
- StoreImageMetadataFunction
- Arn
TransformMetadataLambdaArn:
Fn::GetAtt:
- TransformMetadataFunction
- Arn
RoleArn:
Fn::GetAtt:
- StateMachineRole
- Arn
Type: AWS::StepFunctions::StateMachine
PhotoRepoS3Bucket:
Properties:
CorsConfiguration:
CorsRules:
- AllowedHeaders:
- '*'
AllowedMethods:
- PUT
- GET
- POST
- HEAD
AllowedOrigins:
- '*'
ExposedHeaders:
- ETag
Type: AWS::S3::Bucket
RekognitionFunction:
Properties:
CodeUri: s3://media-sharing-refarch/31d08688ac4c72609539eba52cd520f8
Description: Use Amazon Rekognition to detect labels from image
Handler: index.handler
MemorySize: 256
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 60
Type: AWS::Serverless::Function
S3EventTrigger:
DependsOn:
- PhotoRepoS3Bucket
- ImageProcStartExecutionFunction
Properties:
PhotoRepoS3Bucket:
Ref: PhotoRepoS3Bucket
ServiceToken:
Fn::GetAtt:
- CreateS3EventTriggerFunction
- Arn
StartExecutionFunction:
Ref: ImageProcStartExecutionFunction
StartExecutionFunctionArn:
Fn::GetAtt:
- ImageProcStartExecutionFunction
- Arn
accountId:
Ref: AWS::AccountId
Type: Custom::S3EventTrigger
Version: '1.0'
StateMachineRole:
Properties:
AssumeRolePolicyDocument:
Statement:
- Action:
- sts:AssumeRole
Effect: Allow
Principal:
Service:
Fn::Sub: states.${AWS::Region}.amazonaws.com
Version: '2012-10-17'
Path: /MediaSharingRefarch/
Policies:
- PolicyDocument:
Statement:
- Action:
- lambda:InvokeFunction
Effect: Allow
Resource: '*'
Sid: InvokeLambda
Version: '2012-10-17'
PolicyName: InvokeLambda
Type: AWS::IAM::Role
StoreImageMetadataFunction:
Properties:
CodeUri: s3://media-sharing-refarch/1a8335158b144e084df0e1aa485faeb5
Description: Store image metadata into database
Environment:
Variables:
IMAGE_METADATA_DDB_TABLE:
Ref: ImageMetadataDDBTable
Handler: index.handler
MemorySize: 256
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 60
Type: AWS::Serverless::Function
TestClientIAMRole:
Properties:
AssumeRolePolicyDocument:
Statement:
- Action:
- sts:AssumeRole
- sts:AssumeRoleWithWebIdentity
Effect: Allow
Principal:
Federated:
- cognito-identity.amazonaws.com
Version: '2012-10-17'
Policies:
- PolicyDocument:
Statement:
- Action:
- s3:*
Effect: Allow
Resource:
Fn::Sub: arn:aws:s3:::${PhotoRepoS3Bucket}/*
Sid: S3ReadWrite
Version: '2012-10-17'
PolicyName: S3PhotoRepoBucketAccess
- PolicyDocument:
Statement:
- Action:
- dynamodb:*
Effect: Allow
Resource:
- Fn::Sub: arn:aws:dynamodb:${AWS::Region}:${AWS::AccountId}:table/${AlbumMetadataDDBTable}
- Fn::Sub: arn:aws:dynamodb:${AWS::Region}:${AWS::AccountId}:table/${AlbumMetadataDDBTable}/*
- Fn::Sub: arn:aws:dynamodb:${AWS::Region}:${AWS::AccountId}:table/${ImageMetadataDDBTable}
- Fn::Sub: arn:aws:dynamodb:${AWS::Region}:${AWS::AccountId}:table/${ImageMetadataDDBTable}/*
Sid: DynamoTableAccess
Version: '2012-10-17'
PolicyName: DynamoTableAccess
- PolicyDocument:
Statement:
- Action:
- lambda:InvokeFunction
Effect: Allow
Resource:
- Fn::Sub: arn:aws:lambda:${AWS::Region}:${AWS::AccountId}:function:${DescribeExecutionFunction}
Sid: InvokeDescribeExecutionLambda
Version: '2012-10-17'
PolicyName: InvokeDescribeExecutionLambda
Type: AWS::IAM::Role
TestClientIdentityPool:
Properties:
AllowUnauthenticatedIdentities: true
IdentityPoolName: TestWebApp
Type: AWS::Cognito::IdentityPool
TestClientIdentityPoolRoles:
Properties:
IdentityPoolId:
Ref: TestClientIdentityPool
Roles:
authenticated:
Fn::GetAtt:
- TestClientIAMRole
- Arn
unauthenticated:
Fn::GetAtt:
- TestClientIAMRole
- Arn
Type: AWS::Cognito::IdentityPoolRoleAttachment
TransformMetadataFunction:
Properties:
CodeUri: s3://media-sharing-refarch/7761cb906913bffe76391119cff090f0
Description: massages JSON of extracted image metadata
Handler: index.handler
MemorySize: 256
Role:
Fn::GetAtt:
- BackendProcessingLambdaRole
- Arn
Runtime: nodejs4.3
Timeout: 60
Type: AWS::Serverless::Function
Transform: AWS::Serverless-2016-10-31
